Prototyping

C&S can manufacture protoypes to support

  • Concept & Technology Verification
  • Market Reasearch
  • Feature & Functionality Evaluation
  • Industry Standards Testing
  • Field Trial Installations

Typical prototypes are

  • Physical
    • Space models
    • Physical concepts
  • Working
    • Working Concepts - Physical, Electrical & Electronic
    • Working Technology Demonstrators

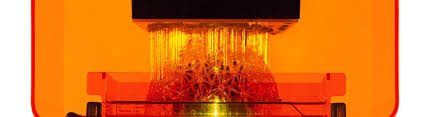

Rapid Prototyping

3D Printed components & assemblies

  • Material
    • Black, White, Grey, Clear, Blue, Red, Green
    • Rigid, Flexible, Transparent, Robust, High Temperature
    • available to match capabilities of ABS, Nylon, Rubber
  • Finishes & Treatments¬†– Painted & laqured, Sanded, Post cured
  • Print detail from 0.025mm to 0.2mm

Electronic Prototyping

  • FR4 & glass Fibre in a range of thicknesses
  • Single, Dual or Multilayer options
  • Bare PCB functional Testing
  • Surface Mount & Through Hole population
  • Reflow & Manual Soldering
  • Custome Wire harness manufacture
  • Custome Flex Rigid PCB assemblies

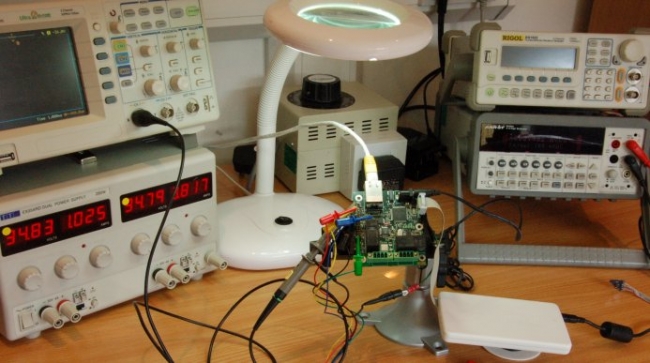

Prototype Testing

  • Our facilities enable testing of all aspects of electrical, electro-mechanical and mechanical prototype design ensuring we can deliver tested and working prototypes that meet your requirements
    Electrical & Electronic Test & De-bug

    • low voltage AC & DC circuits, typically up to 440VAC and 500A
    • RF Circuits, ISM (800-900Mhz) to WiFi (2.4Ghz)
    • Analogue & Digital, signal generation, test & debug
  • Mechanical Testing
    • Thermal, Self Heating & In application environmental
    • Actuator, force & reliability
    • Mechanical & structrural
