Finite Element Analysis

C&S provides to Clients a comprehensive FEA capability essential to help solve the complex interactions & physics problems typically faced in Product Design

Structural - Linear Static Stress Analysis

Mult-Physics Analysis

  • Structural - Static, Dynamic & Modal
  • Thermal - Linear & Non Linear
  • Thermal Electric - Linear & Non Linear
  • CFD
  • Electro Magnetic - Linear & Non Linear



Thermal Electric - Non Linear Temperature Rise as a Result of an Electrical Load

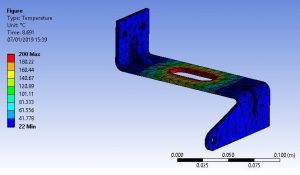

Transient Thermal Analysis

 Electro Magnetic - Flux Density in Magnetic Circuit

 Static Structural using the result load from the transient thermal analysis

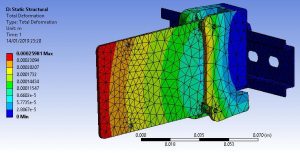

 Static Structural assembly using the load from steady state thermal analysis
